Lexicomm Type A Outstation in Stainless Steel
£243.12 (inc VAT: £291.74)
Summary
The ViLX-OSA is a Type A EVCS (Emergency Voice Communications System) outstation designed to provide secure, bi-directional, full duplex voice communication for firefighters during emergencies in high rise buildings or large sites where radio communication may be compromised by fire plasma interference.
Fully compliant with BS 5839-9:2021, the outstation can function as a fire telephone system, disabled refuge system, or as a combined system when both applications are required in a building. The system is compatible with the Lexicomm EVC system and the UnicornVoice PAVA system.

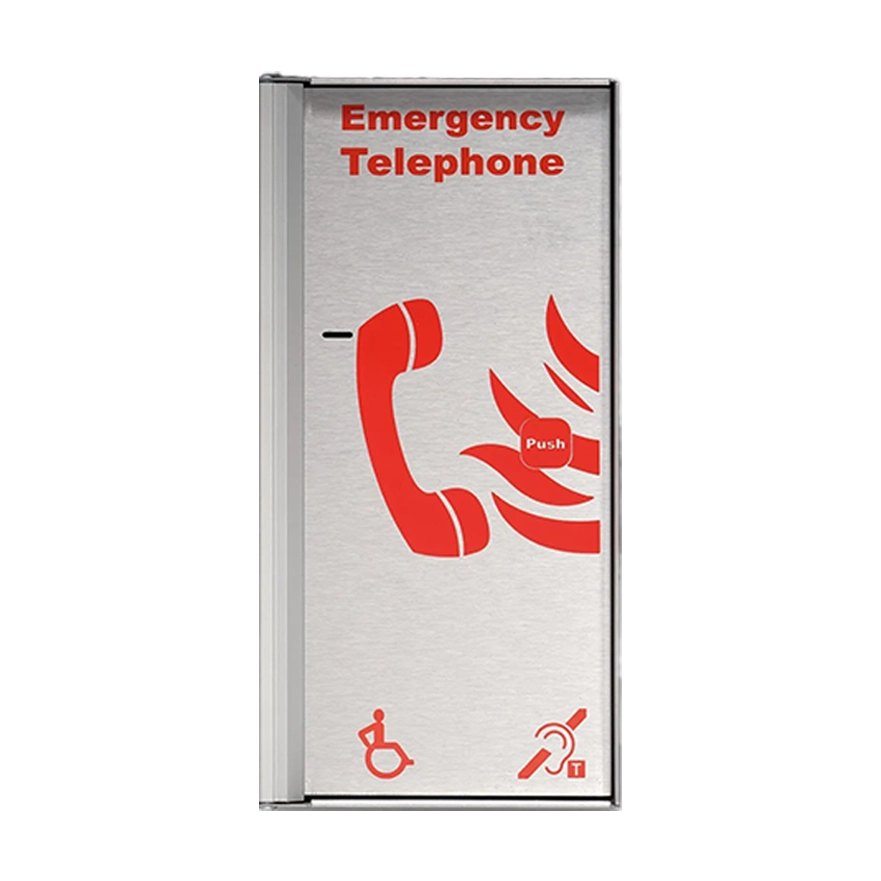

Supplied in a brushed stainless steel finish with high contrast red screen printing, the outstation features a rugged red telephone handset behind a magnetic push door. A flush mounting bezel is available to reduce installation complexity while meeting Building Regulations Document M requirements for accessibility.
Features
- Compact design suitable for surface or flush mounting
- Ruggedised telephone handset for demanding environments
- High volume ringer for noisy locations
- Status LED for visual indication
- 20mm cable gland knock-out for installation flexibility
- Telecoil technology for hearing impaired users
- Full duplex operation enabling simultaneous two-way communication
- Fully compliant to BS 5839-9:2021 standards
- Magnetic push catch door mechanism
- Brushed stainless steel construction as standard
- Optional flush bezel available for neat wall integration
- Compatible with Lexicomm EVC system and UnicornVoice PAVA system
- Designed for multi-disability users with high contrast RNIB guideline signage
- EOL device fitted for line monitoring
FAQs
What is a Type A outstation and who should use it?
A Type A outstation as defined in BS 5839-9:2021 is primarily intended for use by building management, fire wardens and firefighters. It can function as both a fire telephone and a disabled refuge call point.
What height should the outstation be mounted at?
The outstation should be mounted at a height of 1300mm to 1400mm from the floor to the centre line of the unit to comply with Building Regulations Document M (Access for the Disabled).
What are the dimensions for flush mounting?
For flush mounting, a cut-out of 305mm by 155mm is recommended. The bezel slides over the box and is fixed to the wall using suitable sealant or mastic.
What cable type is recommended and what distance can be achieved?
Enhanced fire resistant 2 core 1.5mm screened cable is recommended, which can run up to 500m from the compatible panel. Refer to BS 5839-9:2021 for exceptions.
Is the outstation accessible for wheelchair users?
Yes, when used as a refuge point, suitable space must be allowed so the system can be accessed by a parked wheelchair. The mounting height of 1300-1400mm also complies with accessibility requirements.
Does the outstation support hearing impaired users?
Yes, the outstation includes telecoil technology specifically for hearing impaired users, in addition to high contrast signage following RNIB guidelines.
What standards does the ViLX-OSA comply with?
The outstation complies with BS 5839-9:2021, BS 9999:2017, EN 60118-4:2015+A1:2018 for product family standards, plus EMC standards EN 55035:2017+A11:2020 and EN 55032:2015+A1:2020, and LVD standard EN IEC62368-1:2020+A11:2020.
Specifications
- Model: ViLX-OSA
- Type: Type A EVCS Outstation
- Surface Mount Height: 300mm
- Surface Mount Width: 150mm
- Surface Mount Depth: 105mm
- Flush Mount Height: 350mm
- Flush Mount Width: 200mm
- Flush Mount Depth: 10mm
- Cut Out Height: 305mm
- Cut Out Width: 155mm
- Cut Out Depth: 95mm
- Weight: 2.2kg
- Material: Stainless Steel
- Finish: Brushed
- Installation Height: 1300mm to 1400mm from floor to centre line
- Cable Type: Enhanced Fire Resistant 2 core 1.5mm Screened
- Maximum Cable Distance: 500m from compatible panel
- Communication Type: Full Duplex Bi-directional
- Cable Gland: 20mm knock-out
- EMC Compliance: EN 55035:2017+A11:2020, EN 55032:2015+A1:2020
- LVD Compliance: EN IEC62368-1:2020+A11:2020
- Product Standards: BS 5839-9:2021, BS 9999:2017, EN 60118-4:2015+A1:2018
- Outstation Part Number: ViLX-OSA
- Bezel Part Number: ViLX-OBZ
- Document Reference: DViLXOSA0001-03
- Manufacturer: Vox Ignis Limited
- Company Registration: 8892407
Downloads
- Datasheet (Adobe PDF)
- Installation Manual (Adobe PDF)
