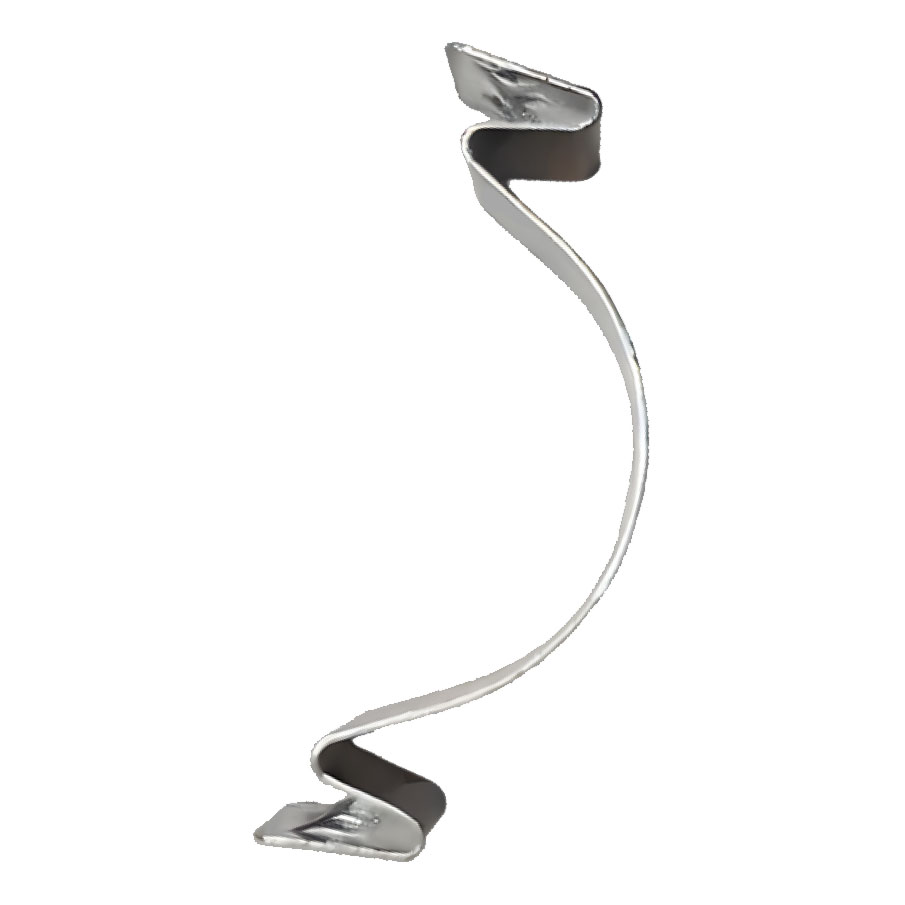

LINIAN Cable Tray Clip, Pack of 25
Summary
The LINIAN Cable Tray Clip is an innovative solution designed for the rapid installation of cables to any tray. This product eliminates the need for tensioning tools, allowing for a simple hand-locking mechanism that secures cables efficiently.
Manufactured in the UK, the LINIAN Cable Tray Clip is made from fire-rated steel and features a lightweight construction that is both strong and easy to install. Its reusable and sustainable design makes it an environmentally friendly choice for various cable management needs.
Features
- No tensioning tools required
- Lightweight construction
- Use with any brand of cable tray
- Fire rated steel construction
- Non corrosive and weather resistant
- Available in multiple sizes
Specifications
Size Ranges
- 50mm Tray Clip : Pull Out Force 20kg
- 75mm Tray Clip : Pull Out Force 90kg
- 100mm Tray Clip : Pull Out Force 130kg
- 150mm Tray Clip : Pull Out Force 200kg
- 225mm Tray Clip : Pull Out Force 150kg
Compliance
- Complies With : BS7671, 18th Edition
- Guidelines : BEAMA Guide to Premature Collapse (2022)
Construction
- Material : Fire Rated Steel
- Manufactured In : UK
- Weather Resistance : Non Corrosive
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| Size | 50mm, 75mm, 100mm, 150mm, 225mm |
