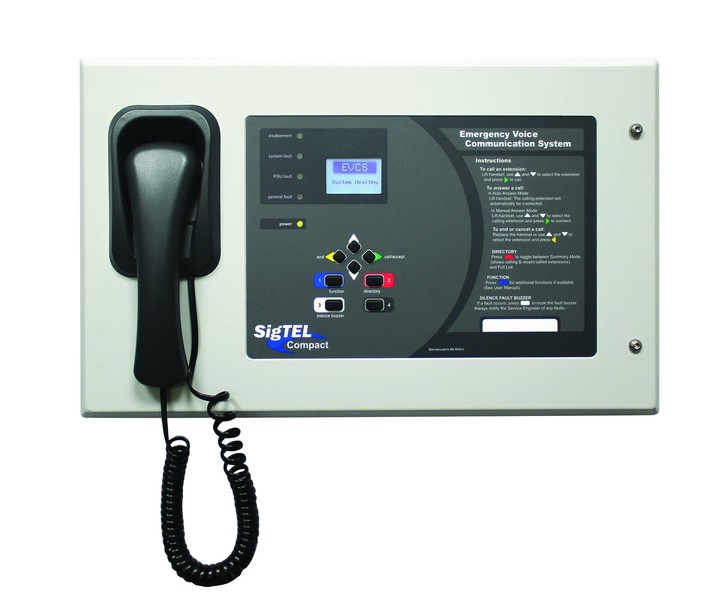

SigTEL 4-16 Line Master Controller
Summary
The SigTEL 4, 8 or 16 Line Master Controller is an advanced communication system designed for applications such as disabled refuge, fire telephone, and stadium marshalling. It enables operators to communicate efficiently with up to four disabled refuge or fire telephone outstations. The system has been recently upgraded to feature a semi-recessed, less obtrusive handset, enhancing its usability and aesthetic appeal.
With improved networking capabilities, the SigTEL system can be expanded to accommodate up to 224 lines, allowing for comprehensive coverage in large facilities. The system setup is streamlined with a backlit LCD and a unique ‘auto-learn’ feature, facilitating quick and easy installation. Additionally, the controller can be semi-flush mounted using an EVC385 bezel, offering flexibility in installation options.
Key Features
- Backlit LCD with auto-learn setup
- 24-hour standby and 3-hour operation with battery backup
- Interfaces with accessible toilet alarms, hearing loops, and more
- Facilitates compliance with BS5839-9
- Metal construction with RAL7035 grey finish
Specifications
- Approvals/Certifications : Facilitates compliance with BS5839-9 when correctly installed
- Mains Supply : 230V 50/60Hz
- Mains Rated Current : 500mA
- Internal Power Supply : 19V-28.5V (27V nominal). Ripple 7V maximum (battery fault)
- Total Output Current : Limited to 1.5A @ 230Vac
- Quiescent Current : 100mA (controller with fault buzzer sounding) plus 1mA per Type A outstation and 3.2mA per Type B outstation
- Max Battery Size and Type : 2 x 12V 7Ah VRLA connected in series
- Number of Lines : 4, 8 or 16 (extra lines available on networked systems)
- Auxiliary Relays : Changeover fault relay (failsafe). 30V 1A max
- Open Collector Outputs : OP1 activates when the ECU is ringing; OP2 activates when there is an active accessible toilet alarm call; OP3 closes when the handset is off hook and remains active for 2 mins after it is
- Other Outputs : +24 V, typically used to supply power to equipment connected to the ECU’s open collector outputs (relays, etc)
- Engineer (AL3) Functions : Engineer mode and reset buttons (internal)
- Indicators : 128 x 64 pixel LCD display; Disablement; System fault; PSU fault; General fault; Power on
- Controls : Handset; Scroll buttons; Hold; Call Accept; Function; Directory; Silence Buzzer
- Product Dimensions (mm) : 410 W x 250 H x 80 D mm (base); 439 W x 274 H x 7 D mm (lid). Handset protrudes 30 mm beyond lid
- Construction & Finish : Metal lid and base, RAL7035 grey texture
- IP Rating : IP20
- Weight : 3.1kg (without batteries)
- Operating Conditions/Temperature : -5ºC to +40ºC. Max relative humidity: 95%
Downloads
- Brochure (Adobe PDF)
- Quick Start Guide (Adobe PDF)
- Installation Manual (Adobe PDF)
