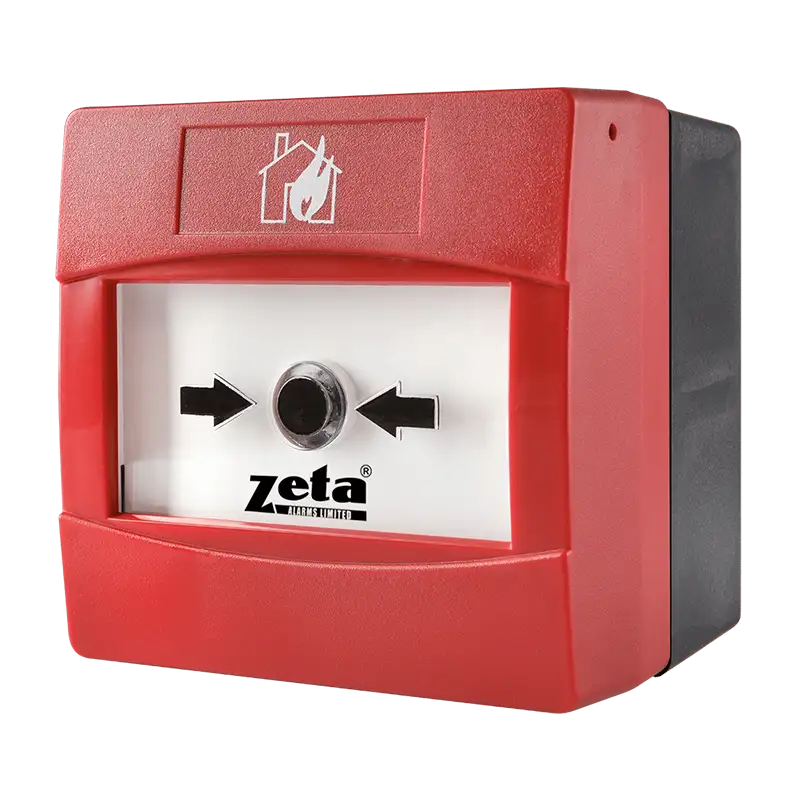

Zeta CP4 Addressable Weatherproof Call Point
£56.72 (inc VAT: £68.06)
Summary
The Zeta ZT-CP4/WP/AD is a weatherproof addressable manual call point designed for outdoor fire alarm installations. This call point uniquely combines the familiar tactile feedback of breaking glass with the environmental and cost benefits of a resettable operating element, eliminating the need for replacement glass after each activation.
Featuring IP67 weatherproof protection, the ZT-CP4/WP/AD is built to withstand harsh outdoor conditions whilst maintaining reliable operation across a wide temperature range. The unit incorporates an 8-way DIP switch for simple address configuration and includes a visual LED indicator to confirm alarm activation, providing clear operational feedback to users and maintenance personnel.
Compatible with Zeta addressable fire alarm systems, this call point is constructed from high-impact resistant ABS glass fibre material and is certified to EN 54-11 standards. An optional polycarbonate protective cover (CP4-CV) can be fitted to prevent accidental activation, converting the unit into a double-action call point for applications requiring additional protection against false alarms.
Features
- IP67 rated weatherproof construction for outdoor applications
- Resettable element provides glass-breaking feel without replacement costs
- Visual LED indication confirms alarm activation status
- 8-way DIP switch for simple address configuration
- High-impact resistant ABS glass fibre construction
- Wide operating temperature range from -20°C to +60°C
- EN 54-11 approved for fire alarm systems
- Compatible with optional protective cover for double-action operation
- Low current consumption with 600µA quiescent draw
- Reflective flag indicator for high visibility alarm condition
- Spring-free mechanism ensures reliable operation
FAQs
What is the IP rating of the ZT-CP4/WP/AD weatherproof call point?
The ZT-CP4/WP/AD has an IP67 rating, making it fully protected against dust ingress and capable of withstanding temporary immersion in water. This makes it suitable for outdoor installations and areas exposed to harsh weather conditions.
How does the resettable element work compared to traditional break glass call points?
The ZT-CP4/WP/AD features a unique spring mechanism that mimics the tactile feel of breaking glass when pressed, but uses a resettable element that returns to its original position. This eliminates the need to replace glass after each activation, reducing maintenance costs and environmental waste whilst maintaining the familiar user experience.
How do you address the ZT-CP4/WP/AD call point?
Addressing is configured via an 8-way DIP switch located on the back of the call point. This allows for straightforward address programming without requiring additional tools or software, making installation and commissioning more efficient.
What is the difference between the ZT-CP4/AD and ZT-CP4/WP/AD models?
The ZT-CP4/WP/AD is the weatherproof version with IP67 protection, designed for outdoor use. It measures 85 x 85 x 72mm and is slightly deeper than the standard indoor ZT-CP4/AD (85 x 85 x 61mm with IP32 rating). Both models share the same electrical specifications and resettable mechanism.
Can the ZT-CP4/WP/AD be converted to a double-action call point?
Yes, the optional CP4-CV polycarbonate protective cover can be fitted to provide extra protection against accidental activation. When installed, this cover must be lifted before the call point element can be pressed, effectively converting it to a double-action device. The protective cover must be ordered separately.
What operating voltage does the ZT-CP4/WP/AD require?
The call point operates on 17-28V DC, which is standard for Zeta addressable fire alarm systems. It has a low quiescent current draw of 600µA maximum and an alarm current of 2.5mA maximum.
What temperature range can the ZT-CP4/WP/AD operate in?
The weatherproof call point is designed to operate reliably across a temperature range of -20°C to +60°C, making it suitable for most outdoor applications in varying climatic conditions.
Specifications
- Model: ZT-CP4/WP/AD
- Type: Addressable weatherproof manual call point
- Approval: EN 54-11
- Input Voltage: 17-28V DC
- Element Type: Resettable
- Quiescent Current: 600µA maximum
- Alarm Current: 2.5mA maximum
- Operating Temperature: -20°C to +60°C
- Maximum Humidity: 95% RH non-condensing
- IP Rating: IP67
- Dimensions (W X H X D): 85 x 85 x 72mm
- Weight: 250g
- Material: High-impact resistant ABS glass fibre
- Address Configuration: 8-way DIP switch
- Visual Indication: LED alarm confirmation
- Colour: Red
Downloads
- Datasheet (Adobe PDF)
Additional information
