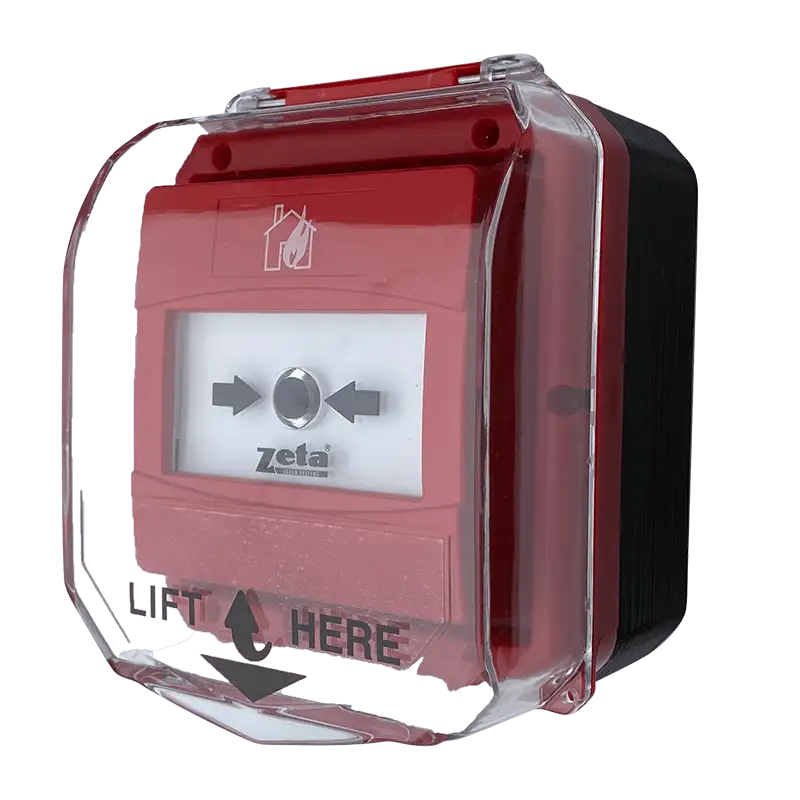

Zeta CP4 PLUS Addressable Surface Mount Manual Call Point with Anti-Tamper Weatherproof Enclosure
£53.65 (inc VAT: £64.38)
Summary
The Zeta CP4/AD/WP/PLUS is an all-in-one anti-tamper and weatherproof protective enclosure specifically designed for Zeta addressable manual call points. This robust polycarbonate housing provides essential protection against environmental failure, vandalism, and accidental damage in challenging installation locations where standard call points may be vulnerable.
Manufactured from UV-stabilised polycarbonate, the CP4/AD/WP/PLUS delivers IP67 weatherproof protection whilst offering high-impact resistance from both frontal and side impacts. The compact yet incredibly strong construction makes it ideal for industrial areas, outdoor locations, washdown areas, saunas, pool environments, and other harsh settings where manual call points require additional protection beyond standard IP ratings.
The enclosure features 20mm threaded cable entry points on both top and bottom surfaces, allowing flexible installation orientation. A built-in break-seal facility deters tampering whilst remaining easy-breaking for emergency access, with one break-seal supplied as standard. The unit includes a translucent operation label providing clear instructions for legitimate activation during emergencies.
Features
- IP67 weatherproof rating protects against water and dust ingress
- UV-stabilised polycarbonate construction prolongs product life in outdoor installations
- High-impact protection from frontal and side impacts
- Anti-tamper break-seal mounting facility with built-in holes
- Surface mount installation for addressable manual call points
- 20mm threaded cable entry points on top and bottom surfaces
- Rotatable back box orientation for flexible installation
- Translucent operation label with clear emergency instructions
- Robust polycarbonate material resists environmental degradation
- One break-seal supplied with each enclosure
- Compact dimensions suitable for space-constrained locations
- Protects against false evacuations caused by environmental damage
FAQs
What is the CP4/AD/WP/PLUS protective enclosure designed for?
The CP4/AD/WP/PLUS is specifically designed to provide weatherproof and anti-tamper protection for Zeta addressable manual call points. It creates an IP67-rated protective housing around the call point, defending against environmental failure, vandalism, and accidental damage in harsh or vulnerable installation locations.
Where should the CP4/AD/WP/PLUS be installed?
This protective enclosure is ideal for industrial areas, outdoor locations, washdown areas, saunas, pool environments, and any harsh settings where manual call points require additional protection. It’s particularly suited to areas with high risk of impact damage, extreme weather exposure, or potential vandalism.
How does the break-seal facility work?
The CP4/AD/WP/PLUS features built-in mounting holes positioned on the lower right corner of the cover and central mounting chassis for attaching a break-seal. This deters unwanted access and allows inspection for tampering. The break-seals are designed to be easy-breaking so they don’t impede emergency access when legitimate activation is required. One break-seal is supplied with each unit.
Can the enclosure be installed in different orientations?
Yes, the rear back section has 20mm threaded cable entry points on both the top and bottom surfaces, giving you the ability to rotate the back box depending on installation circumstances and cable routing requirements.
Is this a retrofit solution for existing call points?
No, the CP4/AD/WP/PLUS is designed for surface mount installation and is not a retrofit solution. It must be installed as part of a new call point installation rather than fitted over existing mounted call points.
What replacement parts are available for the CP4/AD/WP/PLUS?
Replacement break-seals are available separately as accessory code UG-BR-10, supplied in packs of 10. These allow you to maintain the anti-tamper functionality after legitimate activation or inspection has broken the original seal.
How does UV stabilisation benefit the enclosure?
The UV-stabilised polycarbonate construction prevents degradation from prolonged exposure to sunlight and UV rays. This prolongs the product’s lifespan in outdoor installations and maintains the structural integrity and impact resistance of the protective housing over time.
Specifications
- Product Code: CP4/AD/WP/PLUS
- Type: Protective enclosure for addressable manual call points
- Application: Anti-tamper and weatherproof housing
- IP Rating: IP67
- Material: UV-stabilised polycarbonate
- Impact Protection: High-impact resistant from front and side
- Installation Type: Surface mount (not retrofit)
- Cable Entry: 20mm threaded inserts (top and bottom)
- Dimensions (W X H X D): 112 x 139 x 92mm
- Depth At Mounting Points: 41mm centre, 11mm sides, 5mm top/bottom, 40mm cable entry
- Break-Seal Facility: Built-in mounting holes for tamper detection
- Break-Seals Supplied: 1 per unit
- Operation Label: Translucent with full instructions
- Colour: Red with clear polycarbonate cover
- Suitable Environments: Industrial, outdoor, washdown, sauna, pool areas
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| System Type | |
| Environment | |
| Protocol | |
| Device Type |
