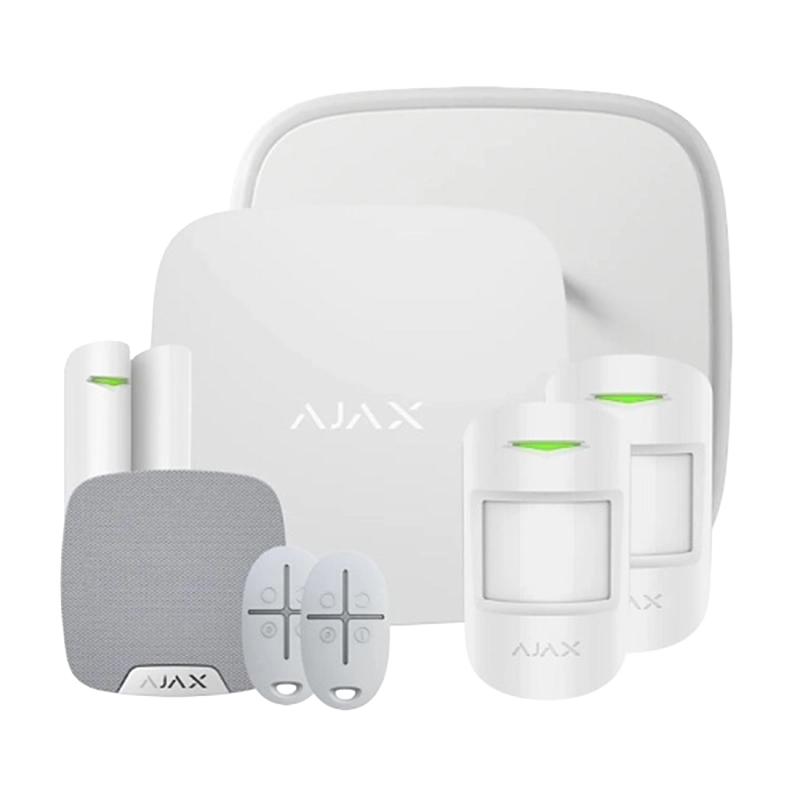

Ajax Baseline Kit 2 | Hub 2 (2G Sim/Ethernet) | MotionProtect U, DoorProtect U, SpaceControl, HomeSiren U & StreetSiren DoubleDeck) | White
Summary
The Ajax Baseline Kit 2 (SKU: 35651.114.WH1) is a complete wireless intruder alarm starter kit designed for houses and larger properties. Built around the Ajax Hub 2 (2G) Jeweller control panel, the kit includes everything needed to protect both the interior and perimeter of a property straight out of the box, with no wiring required. All components communicate wirelessly via Ajax’s proprietary Jeweller radio protocol, offering encrypted two-way communication and a range of up to 2,000 metres in open space.
The kit includes two MotionProtect U Jeweller passive infrared detectors for interior coverage, one DoorProtect U Jeweller magnetic opening detector for doors or windows, two SpaceControl Jeweller keyfobs for convenient arming and disarming, a HomeSiren U Jeweller indoor siren, and a StreetSiren DoubleDeck Jeweller outdoor siren. Together, these components provide layered protection from the perimeter inwards, with both indoor and outdoor alert capabilities.
Please note, the cover for the external sounder is not included within this kit. The cover can be found here.
The system is managed entirely through the Ajax app for iOS and Android, allowing remote arming, disarming, event monitoring, and configuration from anywhere. The Hub 2 (2G) supports connection to a professional alarm receiving centre (ARC) via industry-standard protocols including SurGard (Contact ID) and SIA (DC-09), making it suitable for monitored installations. The kit is compliant with EN 50131 Grade 2 and PD 6662:2017.
Features
- Complete wireless alarm kit — no cabling required, all devices are battery-powered and ready to use out of the box
- Hub 2 (2G) Jeweller control panel — connects via Ethernet and two SIM cards (2G) for triple-path communications
- Automatic failover between Ethernet and cellular connections to maintain system integrity
- Supports up to 100 wireless Ajax devices, 9 security groups, 50 users, and 32 automation scenarios
- Two MotionProtect U Jeweller PIR detectors — 12 m detection radius, pet-immune when correctly installed
- DoorProtect U Jeweller magnetic opening detector — dual reed switch design with left/right magnet flexibility
- Two SpaceControl Jeweller keyfobs — arm, disarm, set night mode, and trigger a panic alarm with a single press
- HomeSiren U Jeweller indoor siren — up to 105 dB sound output with LED indicator, up to 2,000 m wireless range
- StreetSiren DoubleDeck Jeweller outdoor siren — up to 113 dB, LED frame, IP54 rated, supports optional Brandplate faceplate
- Jeweller encrypted two-way radio protocol — block encryption with a dynamic key, anti-jamming, and anti-sabotage protection
- Tamper detection on all devices — instant alerts if any device is removed from its mounting surface
- Up to 5 years battery life across all wireless devices — battery status visible in the Ajax app at all times
- Remote configuration and management via the Ajax app for iOS and Android, or Ajax PRO app for installers
- ARC-compatible via SurGard (Contact ID), SIA (DC-09), and ADEMCO 685 protocols
- Compliant with EN 50131 Grade 2 and PD 6662:2017
- Available in white (SKU: 35651.114.WH1) and black (SKU: 35650.114.BL1)
FAQs
What is included in the Ajax Baseline Kit 2?
The kit contains one Hub 2 (2G) Jeweller control panel, two MotionProtect U Jeweller PIR motion detectors, one DoorProtect U Jeweller magnetic opening detector, two SpaceControl Jeweller keyfobs, one HomeSiren U Jeweller indoor siren, and one StreetSiren DoubleDeck Jeweller outdoor siren.
Do I need professional installation?
All devices are wireless and battery-powered, and can be installed without specialist tools. However, for monitored installations connected to an alarm receiving centre (ARC) or for compliance with PD 6662:2017, professional installation and commissioning by a qualified security engineer is recommended.
Can the system be connected to an alarm receiving centre (ARC)?
Yes. The Hub 2 (2G) supports connection to a central monitoring station via SurGard (Contact ID), SIA (DC-09), ADEMCO 685, and other proprietary protocols. The system is compliant with EN 50131 Grade 2 and PD 6662:2017, making it suitable for professionally monitored installations.
How is the system managed and controlled?
The system is managed via the Ajax app, available for iOS and Android. Installers and security companies can use the Ajax PRO app or Ajax PRO Desktop for advanced configuration. The SpaceControl keyfobs included in this kit also allow quick arming, disarming, and night mode selection from the keyring, without needing a smartphone.
What happens if the broadband connection fails?
The Hub 2 (2G) automatically switches between Ethernet and cellular (2G/3G) connections. If the primary Ethernet connection is lost, the hub fails over to the SIM card connection instantly, ensuring the system remains communicating with the ARC and app users at all times.
Can I expand the system beyond the devices in the kit?
Yes. The Hub 2 (2G) supports up to 100 wireless Ajax devices, including additional motion detectors, door contacts, smoke detectors, flood detectors, keypads, range extenders, and more. The system can be expanded over time by adding compatible Ajax Jeweller devices through the app.
How long do the batteries last?
All wireless devices in this kit are rated for up to 5 years of battery life under normal operating conditions. Battery status is monitored continuously by the hub and reported in the Ajax app, with advance low-battery notifications sent to users and installers.
Is this kit suitable for outdoor use?
The StreetSiren DoubleDeck Jeweller outdoor siren is rated IP54 and designed for external installation. The remaining devices — including the hub, motion detectors, door detector, and indoor siren — are designed for indoor use only. The Hub 2 (2G) should be installed in a secure, sheltered indoor location.
Specifications
- SKU: 35651.114.WH1
- Colour: White
- Kit Contents: Hub 2 (2G) Jeweller × 1, MotionProtect U Jeweller × 2, DoorProtect U Jeweller × 1, SpaceControl Jeweller × 2, HomeSiren U Jeweller × 1, StreetSiren DoubleDeck Jeweller × 1
- Radio Protocol: Jeweller (two-way encrypted)
- Communication Range (Open Space): Up to 2,000 m (hub to devices)
- Hub Model: Hub 2 (2G) Jeweller
- Hub Communication Channels: Ethernet + 2 × SIM (2G/3G)
- Hub Connected Devices: Up to 100
- Hub Security Groups: Up to 9
- Hub Users: Up to 50
- Hub Backup Battery: Built-in Li-ion 2 Ah — up to 16 hours without Ethernet
- Hub Power Supply: 110–240 V AC
- Motion Detector Type: MotionProtect U Jeweller — passive infrared (PIR)
- Motion Detection Range: Up to 12 m radius
- Motion Detector Battery: 1 × CR123A, up to 5 years
- Opening Detector Type: DoorProtect U Jeweller — dual reed switch
- Opening Detector Battery: CR123A, up to 5 years
- Indoor Siren Model: HomeSiren U Jeweller
- Indoor Siren Volume: Up to 105 dB
- Indoor Siren Battery: CR123A, up to 5 years
- Outdoor Siren Model: StreetSiren DoubleDeck Jeweller
- Outdoor Siren Volume: Up to 113 dB
- Outdoor Siren Battery: 4 × CR123A, up to 5 years
- Outdoor Siren Ingress Protection: IP54
- Keyfob Model: SpaceControl Jeweller
- Keyfob Battery: CR2032, up to 5 years
- App Compatibility: Ajax app (iOS, Android); Ajax PRO app (iOS, Android, Windows)
- ARC Protocols: SurGard (Contact ID), SIA (DC-09), ADEMCO 685
- Standards Compliance: EN 50131 Grade 2, PD 6662:2017
- Encryption: Block encryption with dynamic key
