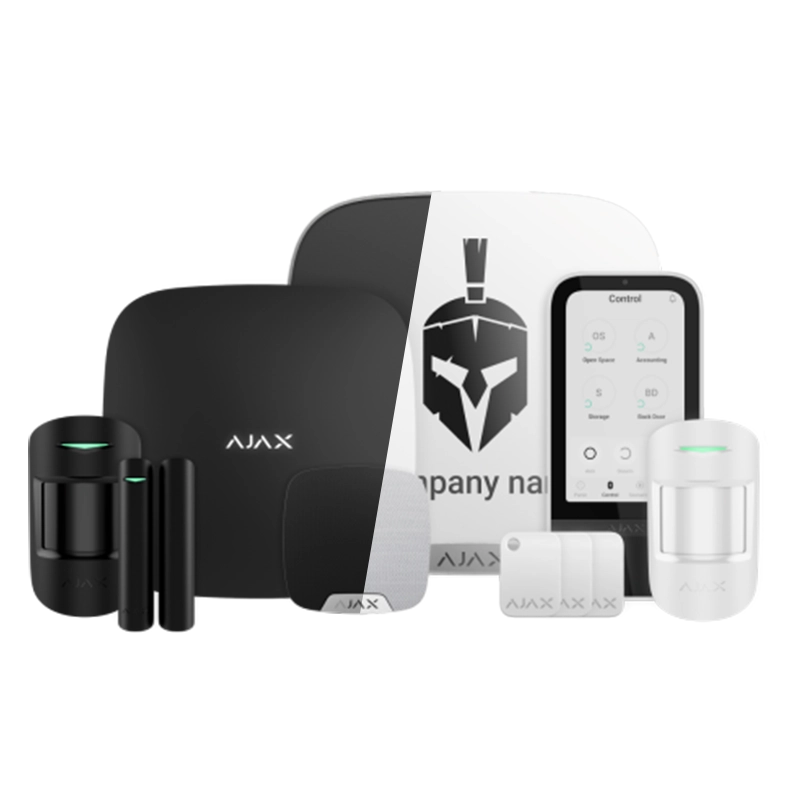

Ajax Superior Kit 27 | Hub 2 (2G/Ethernet) | KeyPad TouchScreen, MotionProtect, DoorProtect & Sirens | Choice of White or Black

FAQs

What is the difference between Ajax Superior and standard Ajax products?

Ajax Superior devices are specifically designed for professional installations and project-oriented applications. They offer enhanced certification compliance including Grade 2 and Grade 3 standards (EN 50131, PD 6662), improved hardware specifications, and features tailored for commercial environments. Superior products can only be activated using the Ajax PRO Engineer App, ensuring professional installation and configuration. While maintaining the same user-friendly interface, Superior devices provide additional reliability and meet stricter regulatory requirements for commercial security installations.

How does the pet immunity feature work on the MotionProtect S detectors?

The Superior MotionProtect S uses Ajax’s SmartDetect algorithm combined with a specially designed Fresnel lens to distinguish between humans and pets. The lens pattern features large sections that capture IR radiation at adult head and torso level, while smaller sections provide detailed thermal mapping. The system analyses multiple parameters including IR radiation intensity, thermal spot size, movement speed, and time spent in the detection zone. When properly installed at the recommended height of 2.4 metres and correctly configured, the detectors reliably ignore pets weighing up to 20kg and below 50cm in height whilst detecting human movement from the first step.

What happens if one communication channel fails on the Hub2?

The Hub2 features redundant communication with dual GSM (supporting two different SIM cards) plus Ethernet connectivity. If the primary Ethernet connection fails, the hub automatically switches to GSM communication. The system supports 2G and 3G networks and can use SIM cards from different mobile providers to eliminate single-point-of-failure risks. If one SIM card fails to respond, the second activates automatically. This triple-redundancy design ensures alarm signals reliably reach users and central monitoring stations even during internet outages or mobile network disruptions. The system also includes a 2Ah Li-Ion backup battery providing up to 15 hours of operation during mains power failure.

Can I expand this system with additional devices in the future?

Yes, the Hub2 supports up to 100 wireless devices and 10 MotionCam detectors, providing substantial expansion capability beyond the seven devices included in Kit 27 Superior. You can add additional motion detectors (including MotionCam models with photo verification), door/window contacts, glass break detectors, flood detectors, fire detectors, additional sirens, keypads, and automation devices such as relays and sockets. The system also supports integration with up to 25 CCTV cameras or DVRs from manufacturers including Hikvision, Dahua, and Uniview. All devices connect wirelessly using the encrypted Jeweller protocol with a range of up to 1,200 metres, and can be easily added via the mobile app by scanning QR codes.

What security standards and certifications does this system meet?

The Ajax Kit 27 Superior is Grade 2 certified according to EN 50131-1:2006 (European standard for intruder alarm systems) and meets PD 6662:2017 requirements (British standard designed to reduce false alarms and ensure appropriate police response). The system uses NIST-certified AES-128 block encryption with dynamic keys for all data transmission and storage. Individual components meet additional standards including EN 50131-2-2:2021 for motion detectors, EN 50131-6:2017 for wireless communication, and Radio Equipment Directive (RED) compliance. The system’s security features include frequency hopping to prevent jamming, device authentication to prevent spoofing, and tamper detection on all devices. These certifications make the system suitable for both insurance-approved residential installations and commercial security applications requiring documented compliance.

How is the system configured and who can install it?

Ajax Superior products require professional installation and can only be activated using the Ajax PRO Engineer App, available exclusively to accredited Ajax Systems partners. This ensures installations meet security standards and are properly configured for the specific site requirements. Once installed, end users manage the system through standard Ajax apps for iOS, Android, macOS, and Windows, which provide intuitive control including arming/disarming, viewing device status, receiving instant notifications, and adjusting settings. The professional installation requirement ensures optimal device placement, proper configuration of security grades, integration with monitoring stations, and compliance with relevant standards. System users can have different permission levels, with administrators able to add users, create security groups, and configure automation scenarios.
