EvacGo Intelligent Wall Sounder Interface Module
£34.02 (inc VAT: £40.82)
Summary

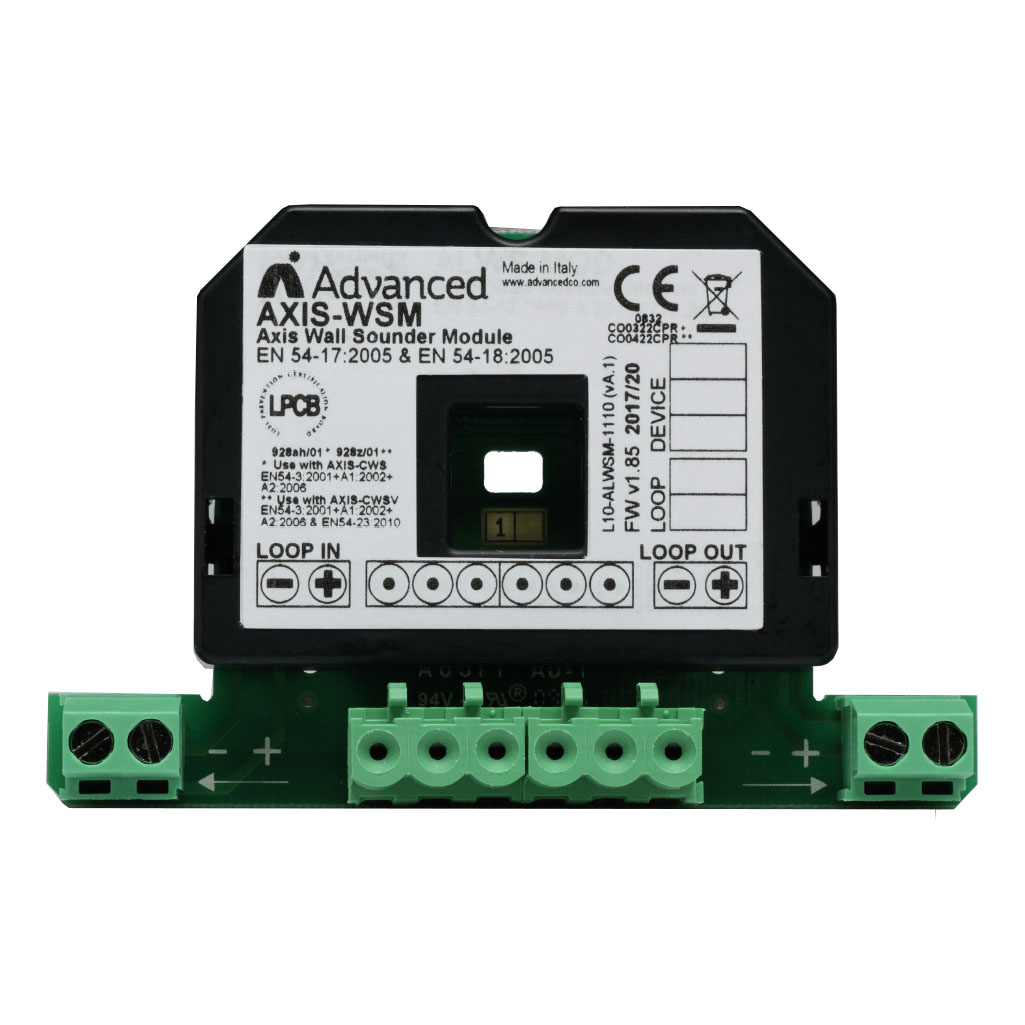

The AXIS-WSM Intelligent Wall Sounder Interface Module is a sophisticated device designed to integrate conventional sounders and sounder beacons into an EvacGo intelligent loop. Compatible with intelligent control panels and systems using the Axis EN protocol, this module offers seamless installation and operation.
Once connected to an EvacGo intelligent loop, the AXIS-WSM becomes fully addressable, providing a comprehensive range of intelligent control and monitoring functionalities. This ensures enhanced safety and operational efficiency in emergency situations.
Features
- Flexible modular design
- Easy to install
- Manual and auto addressing options
- Built-in short circuit isolators
- Up to 32 tones as standard
- Optional microphone self-test facility
- Addressing using the device programming tool or auto addressing capability via the fire control panel
- Fits EvacGo modular wall sounders and sounder beacons
Specifications
- Power Supply Voltage Range : 15 Vdc – 40 Vdc
- Maximum Alarm Current Consumption : 5-8 mA with sounder / 12-28 mA with beacon
- Operating Temperature Range : -10°C to +55°C
- Weight Including Back Box : 27 g
- Max Tolerated Humidity : 85% RH (non-condensing)
- IP Rating : IP20
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| Device Type |
