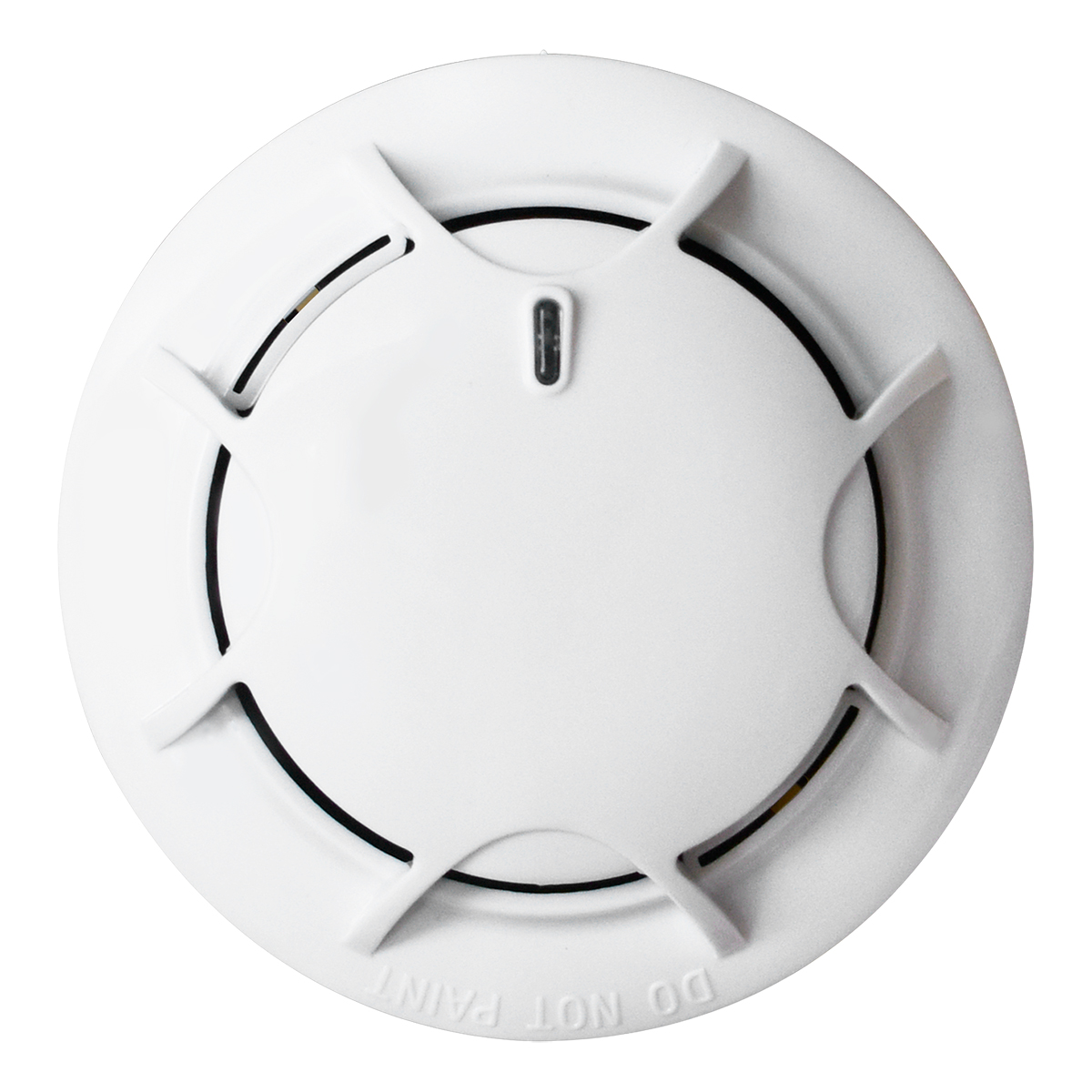

Kidde Commercial Conventional Optical Smoke Detector
£15.89 (inc VAT: £19.07)
Summary
The Kidde NC-DPO-W is a high-performance photoelectric (optical) smoke detector designed for a variety of applications, including hotels, restaurants, office buildings, schools, banks, warehouses, libraries, and computer rooms. Its advanced detection capabilities make it suitable for environments where reliable smoke detection is crucial.
This detector can be installed on the GST DB-01 conventional detector base for standard applications or the GST DB-01D diode base when head-out functionality to BS5839 standards is required. With programmable detection sensitivities, the NC-DPO-W ensures adaptability to different environmental conditions, enhancing its effectiveness in smoke detection.
Features
- Supports drift compensation for good environmental adaptability
- Local test activation with reed switch for maintenance checks
- Chamber contamination checking to ensure optimal performance
- Configurable polling LED support for customizable alerts
- Remote indicator output for integration with alarm systems
- Removable sensing chamber for easy maintenance
Specifications
- Operating Voltage : 9.5 To 28 VDC (24 VDC Typical)
- Current Consumption : <60 μA (Quiescent), ≤55 mA (Alarm)
- Detection Principle : Optical, Tyndall Effect
- Sensitivity : Programmable
- Output Quantity : 1
- Output Type and Rating : Remote Indicator
- Physical Dimensions : 54.5 mm (Including Base) x 100 mm Ø
- Net Weight : ±110 g
- Colour : White (RAL 9016)
- Mounting Type : Ceiling Mount
- Operating Temperature : -10 To +50°C
- Relative Humidity : 0 To 95% Noncondensing
- IP Rating : IP2x
- Compliancy : CE, REACH, RoHS 3, WEEE
- Certification : CPR
- Standards : EN54-7
Downloads
- Datasheet (Adobe PDF)
