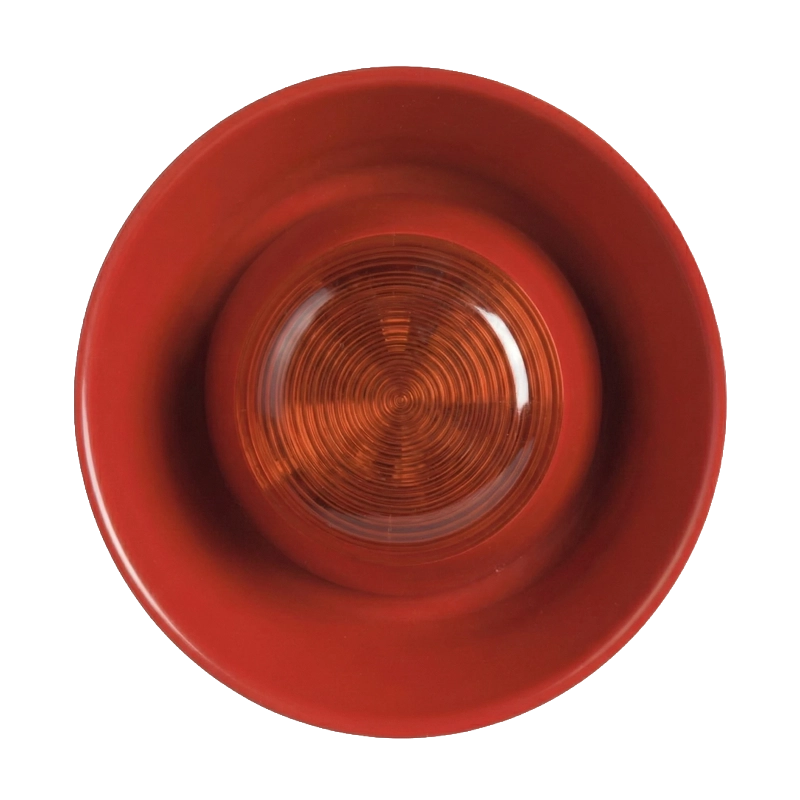

Ziton ZP755HAV-2R | Addressable Horn Sounder & Visual Indicator | Red, Self-Test
£68.62 (inc VAT: £82.34)
Summary
The ZP755HAV-2R is an addressable horn sounder with visual indicator designed for use with Ziton ZP7 series addressable fire detection systems. Combining both audible and visual alarm signals in a single loop-wired unit, this device addresses disability legislation requirements for hearing-impaired occupants whilst reducing installation costs and complexity throughout buildings.
The device features high-efficiency acoustic design and low-current LED technology, enabling up to 20 sounder beacons to be connected to a single 1km loop of 1.5mm² cable. Installation is simplified through a plug-in base system that eliminates internal wiring connections, whilst the included volume control potentiometer allows sound output adjustment where reduced levels are required.
A unique self-test facility automatically activates during routine testing, using a built-in microphone circuit to measure sound output and report failures to the control panel with device address and location details. The unit offers continuous, intermittent and two-tone audible outputs complying with BS5839 Part 1 frequencies, supporting two-stage alert and evacuation alarm configurations certified to EN54-3 standards.
Features
- Addressable horn sounder with integrated visual indicator for combined audible and visual fire alarm notification
- Suitable for Ziton ZP7 series addressable fire detection systems including ZP3 and ZP5 control panels
- Up to 20 devices can be connected to a single 1km loop of 1.5mm² cable with 50m wiring run to first device
- Plug-in base installation eliminates internal wiring connections and reduces installation time
- Built-in microphone self-test facility automatically measures sound output and reports failures with device address
- Sound output up to 92dBA with adjustable volume control potentiometer for reduced levels where required
- Wide sound distribution design for omni-directional coverage throughout protected areas
- User-selectable continuous, intermittent and two-tone audible outputs for alert and evacuation alarm stages
- All sound frequencies comply with BS5839 Part 1 recommendations at 980Hz continuous, 980Hz intermittent and 980Hz/670Hz two-tone
- Red LED visual indicator with 0.8Hz flash frequency providing 48 flashes per minute
- Low loop current consumption: 820µA quiescent, 9.6mA alarm when loop powered
- Dual power options: loop powered (16-20.5V) or external 24VDC supply via jumper selection
- DIP switch addressing from 1-127 devices with separate switches for operating mode and tone configuration
- Open and short circuit loop monitoring plus sound output level and device removal detection
- Operating temperature range -10°C to +60°C with IP21C environmental protection rating
- High impact thermoplastic construction in red finish with red lens illuminating red
- Certified to EN54-3 for fire detection and alarm systems with CPR compliance
- Caution: Visual indicator does not comply with EN54-23 for fire notification beacons
- Compatible with SPB-2R red plug-in base (supplied separately)
- Dimensions 127mm diameter × 113mm height, weight 305g
FAQs
What is the maximum sound output of the ZP755HAV-2R?
The ZP755HAV-2R produces a maximum sound output of up to 92dBA depending on the selected tone configuration. The device includes a volume control potentiometer that allows the sound level to be reduced for areas where lower output is required. However, to conform to EN54 Part 3 sound output level requirements, the volume control must be set to the full clockwise position.
How many ZP755HAV-2R devices can be connected to a single loop?
Up to 20 loop-powered ZP755HAV-2R devices can be connected to a 1km loop of 1.5mm² cable with a wiring run of 50m to the first device. The maximum number varies depending on cable length and configuration – for example, with a 10m panel-to-first-device run, 980m between first and last device, and 10m last-device-to-panel, you can connect 80 detectors plus 20 sounders or 100 detectors plus 15 sounders on the same loop.
What power supply options are available for this device?
The ZP755HAV-2R can be powered either directly from the addressable loop (16-20.5V pulsed) or from an external 24VDC supply (18-30VDC). Power source selection is made using jumpers J1 and J2 on the device. When loop powered, it draws 820µA quiescent and 9.6mA alarm current. When externally powered, loop current reduces to 470µA quiescent and 500µA alarm. External power supplies must be EN54-4 compliant.
What tone options are available and how are they configured?
The device offers three tone types: continuous (980Hz), intermittent (980Hz 0.5s on/off), and two-tone warble (980Hz/670Hz). When configured in ZP755 device mode, DIP switches SW2-1, SW2-2 and SW2-3 allow selection of tone combinations for two-stage alarms – Tone A (primary/alert) and Tone B (secondary/evacuation). Six different tone combinations are available including intermittent/continuous, continuous/intermittent, continuous/two-tone, two-tone/continuous, two-tone/intermittent, and intermittent/two-tone.
Does this device comply with EN54-23 for visual alarm devices?
No, the visual indicator of the ZP755HAV-2R does not comply with EN54-23 and must not be used in fire alarm installations where EN54-23 certified fire notification beacons are specifically required. However, the audible sounder element is certified to EN54-3 for fire detection and alarm systems. The device is suitable for applications requiring visual alarm signals for hearing-impaired occupants where EN54-23 compliance is not mandated.
What is the self-test facility and how does it work?
The ZP755HAV-2R features a unique built-in self-test facility that automatically activates during routine sounder testing. A microphone circuit measures the actual sound output level and compares it against expected performance. If the sound output test fails, the device automatically signals its address and location to the control panel, enabling maintenance teams to quickly identify and resolve faults without manual verification of each device.
What is the difference between ZP755 and ZP754 Emulation modes?
ZP755 device mode (DIP switch SW2-6 OFF) provides user-selectable two-tone operation with full monitoring capabilities and is compatible with all ZP7 series panels. ZP754 Emulation mode (DIP switch SW2-6 ON) operates with two fixed tones and is intended only for ZP5 panels or ZP3 panels with legacy firmware. Most installations should use ZP755 mode for full functionality and tone flexibility.
Can the device be removed from the base once installed?
Yes, the ZP755HAV-2R can be easily removed from its plug-in base by reversing the installation procedure. The device features a release/lock catch mechanism – simply push up, turn until the catch releases, and lift away from the base. The addressable loop monitors for device removal and will report a fault condition to the control panel if a device is removed whilst the system is operational.
Specifications
- Product Code: 178001
- Compatibility: Ziton ZP7 addressable fire detection systems (ZP2, ZP3, ZP5 panels)
- Certification: EN54-3, CPR (Construction Products Regulation EU 305/2011)
- Notified Body: 0370
- Operating Voltage Loop Powered: 16 to 20.5V pulsed
- Operating Voltage External Supply: 18 to 30VDC
- Quiescent Current Loop Powered: 820µA (1.3mA RMS)
- Alarm Current Loop Powered: 9.6mA (8.5mA RMS, 14mA peak)
- Quiescent Current External Powered: 470µA loop, 570µA external (800µA loop RMS)
- Alarm Current External Powered: 500µA loop, 7.2mA external (1mA loop RMS, 4.9mA loop peak)
- Sound Output Level: Up to 92dBA (tone dependent)
- Sound Frequency Continuous: 980Hz
- Sound Frequency Intermittent: 980Hz (0.5s on/off)
- Sound Frequency Two-Tone: 980Hz/670Hz warble
- Sound Distribution: Wide omni-directional
- Visual Indicator: Red LED array
- Flash Rate: 0.8Hz (48 flashes per minute)
- Light Output: 1J
- Addressing Method: 7-way DIP switch (1-127 addresses)
- Maximum Devices Per Loop: 20 sounders (1km loop, 1.5mm² cable, 50m to first device)
- Line Monitoring: Open/short circuit fault, sound output level, device removal, device type
- Self Test: Built-in microphone measures sound output with automatic fault reporting
- Tone Configuration: User-selectable via DIP switches SW2-1, SW2-2, SW2-3
- Device Modes: ZP755 (full functionality) or ZP754 Emulation (legacy compatibility)
- Volume Control: Adjustable potentiometer
- Power Source Selection: Jumpers J1 and J2 (loop or external 24VDC)
- Wiring: Two-core shielded twisted pair loop
- Mounting: Surface mount with plug-in base (SPB-2R/SPB-2P sold separately)
- Material: Moulded high impact thermoplastic
- Colour: Red with red lens (also available: ZP755HAV-2P polar white with clear lens)
- Dimensions: 127mm diameter × 113mm height
- Weight: 305g
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -20°C to +70°C
- Relative Humidity: 10% to 95% non-condensing
- IP Rating: IP21C
- Environment: Indoor use
- WEEE Compliance: 2012/19/EU
Downloads
- Datasheet (Adobe PDF)
- Installation Manual (Adobe PDF)
