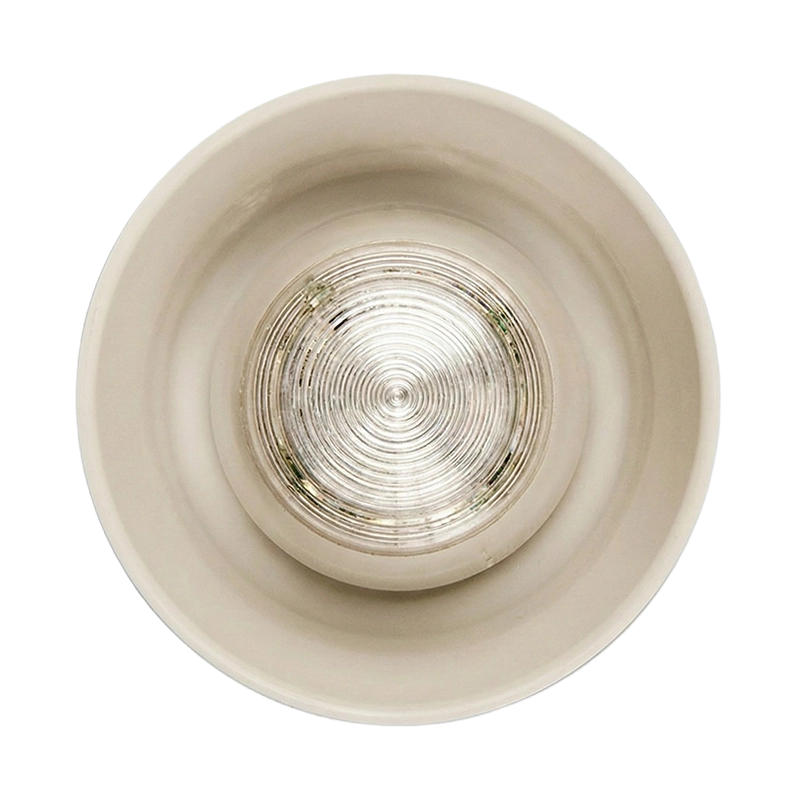

Ziton ZP755HAV-2P | Addressable Horn Sounder & Visual Indicator | Polar White, Self-Test

FAQs

Can the ZP755HAV-2P be powered directly from the loop?

Yes, the ZP755HAV-2P can be powered directly from the loop at 19.5-20.5V with a quiescent current of 820µA and alarm current of 9.6mA. Alternatively, it can be powered from an external EN54-4 compliant 24VDC supply (18-30VDC) using jumpers J1 and J2, which reduces loop current requirements to 470µA quiescent and 500µA in alarm. External power is beneficial for installations with extended loop lengths or higher device counts.

How many ZP755HAV-2P devices can be connected per loop?

Up to 20 loop-powered ZP755HAV-2P devices can be connected on a 1km loop using 1.5mm² two-core shielded twisted pair cable with a maximum 50m run to the first device. Specific loop capacity depends on cable configuration – for example, with 10m panel-to-first-device and 980m between devices, you can install 80 detectors plus 20 sounders, or 100 detectors plus 15 sounders. When externally powered, more devices may be supported as loop current requirements are significantly reduced.

What tone options are available and how are they configured?

The ZP755HAV-2P offers three BS5839 Part 1 compliant tone types: continuous (980Hz steady tone), intermittent (980Hz with 0.5 second on/off pattern), and two-tone warble (alternating 980Hz/670Hz). In ZP755 device mode, DIP switches SW2-1, SW2-2, and SW2-3 configure two selectable tones (Tone A for primary/alert and Tone B for secondary/evacuation) in six different combinations, enabling flexible two-stage alarm configurations. The ZP3 panel programs outputs as “fast flash/slow flash” for Tone A and “steady” for Tone B.

Does this device comply with EN54-23 for visual alarm devices?

No, the ZP755HAV-2P does not comply with EN54-23 and must not be used in fire alarm installations where EN54-23 compliant fire notification beacons are specifically required. However, the device is EN54-3 certified as a fire alarm sounder and includes a visual indicator with red LED array operating at 0.8Hz (48 flashes per minute) with 1J light output, making it suitable for applications requiring combined audible and visual notification where EN54-23 compliance is not mandated.

How does the self-test facility work?

The ZP755HAV-2P features a unique built-in self-test facility that automatically activates during routine sounder testing initiated by the control panel. A microphone circuit within the device measures the actual sound output level and compares it against expected performance. If the sound output test fails (indicating potential speaker failure or obstruction), the device automatically signals its address and location to the control panel, enabling maintenance teams to quickly identify and rectify faulty units without manual testing of each device.

Can the volume be adjusted and still maintain EN54-3 compliance?

The ZP755HAV-2P includes a volume control potentiometer for areas requiring reduced sound output. However, to conform to EN54 Part 3 sound output level requirements, the volume control must be set to the full clockwise position for maximum output (up to 92dBA). If the volume is adjusted downward for any reason, it must be returned to the full clockwise position to maintain certification compliance. The adjustable volume feature is intended for specific applications where reduced output is acceptable and certification is not compromised.

What is the difference between ZP755 mode and ZP754 emulation mode?

ZP755 mode (DIP switch SW2-6 OFF) provides user-selectable two-tone operation with full device monitoring and is the standard operating mode for current Ziton systems. ZP754 emulation mode (DIP switch SW2-6 ON) offers two fixed tones and is designed for compatibility with legacy ZP5 panels or ZP3 panels running older firmware versions. Most installations should use ZP755 mode for full functionality and flexible tone configuration. The device must always operate as a dedicated stand-alone sounder with SW2-7 set to ON.

Is the base included with the ZP755HAV-2P?

No, the mounting base is sold separately. The ZP755HAV-2P requires the SPB-2P polar white plug-in base for installation. The base is wired to the loop (terminals 5 and 6 for loop+/- IN/OUT) and optionally to external power (terminals 1 and 2 for 24VDC+ IN/OUT, terminal 2 for ground IN/OUT) with shield connection on terminal 7. The sounder then plugs directly into the base and rotates to lock in place, eliminating any internal wiring connections and enabling rapid installation and replacement.
